GW Instek GDS-2202A - 200MHz, 2CH, Digital Storage Oscilloscope

200MHz, 2CH, Digital Storage Oscilloscope

GW Instek

Rated 0 / 5 (0 reviews)

Category : Digital Oscilloscopes

by quote only add to cart

Documents:
Brochure Full Brochure

Overview
Features
Specifications
Calibration



GDS-2202A

  • 2 Channels
  • 200MHz Bandwidth
  • 2GSa/s Real-time Sampling Rate and 2Mega Point Memory Depth for Half-channel applications
  • 1GSa/s Real-time Sampling Rate and 1Mega Point Memory Depth for all Channels
  • 100GSa/s Equivalent Time Sampling Rate
  • 1mV /div to 10V/div of Vertical Range
  • 1ns/div to 100s/div of Time Base Range
  • 80,000 wfm/s of Waveform Update Rate
  • 8 inch 800*600 High Resolution TFT LCD Display
  • Segmented Memory and Waveform Search Functions as Standard Functions to Optimize the Utilization of Long Memory Length
  • Abundant Trigger Functions to Capture Demanded Signals
  • Play/Pause and Zoom Window to Rapidly Navigate the Waveform details
  • 36 Automatic Measurement Functions offer Direct Measurement Readings
  • FFT Computing Provides the Frequency Domain Analysis
  • USB and RS232 as standard interfaces
  • SVGA/LAN and GPIB as optional interfaces



This product has been discontinued. Our replacement recommendation is the MDO-2202A - GW Instek 200 MHz, 2-channel, DSO, Spectrum analyzer, dual channel

  • Segmented Memory Function
  • Search Function
  • Logic Analyzer
  • Function Generator Module
  • Modularized Structure
  • A DSO of High Customer Value
  • 200MHz Bandwidth Range
  • 2GSa/s Real-time Sampling Rate and 2Mega Point Memory Depth for Half-channel applications
  • 1GSa/s Real-time Sampling Rate and 1Mega Point Memory Depth for all Channels
  • 100GSa/s Equivalent Time Sampling Rate
  • 1mV /div to 10V/div of Vertical Range
  • 1ns/div to 100s/div of Time Base Range
  • 80,000 wfm/s of Waveform Update Rate
  • 8 inch 800*600 High Resolution TFT LCD Display

Rich Features for Signal Analysis and System Debug



  • Segmented Memory and Waveform Search Functions as Standard Functions to Optimize the Utilization of Long Memory Length
  • Abundant Trigger Functions to Capture Demanded Signals
  • Play/Pause and Zoom Window to Rapidly Navigate the Waveform details
  • 36 Automatic Measurement Functions offer Direct Measurement Readings
  • FFT Computing Provides the Frequency Domain Analysis



Communication Interfaces and I/O



  • USB and RS232 as standard interfaces
  • SVGA/LAN and GPIB as optional interfaces



Ease of Installation and Operation of Optional Functions



  • A Front-Panel Button for the Operation Selections of Optional Functions

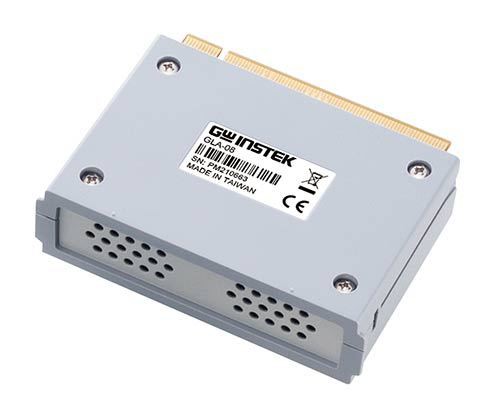

  • Optional plug-ins for 8 or 16 Digital Channels as the MSO upgrade
  • Optional plug-in for Function Generator module
  • Optional plug-ins for GPIB and LAN/SVGA Communication Interfaces



Waveform Technology VPO ( Visual Persistence Oscilloscope )
Display 8" TFT LCD SVGA
Bandwidth (MHz) 200
Number of Channel 2
Memory Depth Max. 2M pts
Sample Rate 2GSa/s (RTS)
100GSa/s (ETS)
 Vertical Resolution  8-bit
Vertical Sensitivity  1mV/div ~ 10V/div
Time Base Range 1ns/div ~ 100s/div
Input Impedance Selection  1MΩ
Auto Measurement 36
Waveform Memory 24
 Panel Setup Memory 20
Auto-Set
 Auto/Normal Trigger
ALT Trigger
 TV Trigger
Cursor Readout
 XY Mode
Zoom
 Go/NoGo
Zoom FFT
 Counter Function
Function Generator  Opt.
Logic Analyzer Opt.
Data Logger V, *It Support From App Software.
Digital Storage
Go/NoGo Output
Interface USB Host/Device, RS-232, GPIB(Opt.), Lan(Opt.)
SVGA Output Opt.
Buzzer Alarm
PictBridge Compatible
Battery Power Operation -
LED Indicators -
Z-Axis Input -
LabView Driver
Power Source AC 100V ~ 240V

Do you have a 200MHz, 2CH, Digital Storage Oscilloscope that needs to be calibrated?

We offer standard traceable calibration and ISO 17025 accredited calibration services.

Get your 200MHz, 2CH, Digital Storage Oscilloscope calibrated today! Click Here!
