Fluke 179-2/IMSK - Industrial Multimeter Service Combo Kit

  Industrial Multimeter Service Combo Kit

Fluke

Rated 0 / 5 (0 reviews)

Category : Multimeters

by quote only add to cart

Documents:
Datasheet

Overview
Features
Specifications
Calibration

Two Tools to Solve the Problem

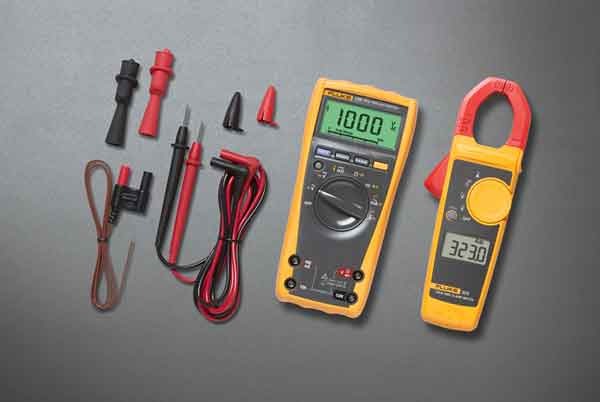

Fluke has combined the Rugged 179 true-rms multimeter with a built-in thermometer and the 323 AC Current Clamp.

The combo pack provides you the functionality needed to effectively and quickly identify and troubleshoot most electrical and electromechanical problems.

Specifications
Voltage DC Accuracy* ± (0.09%+2)
Max. resolution 0.1 mV
Maximum 1000 V
Voltage AC Accuracy* ± (1.0%+3)
Max. resolution 0.1 mV
Maximum 1000 V
Current DC Accuracy* ± (1.0%+3)
Max. resolution 0.01 mA
Maximum 10 A
Current AC Accuracy* ± (1.5%+3)
Max. resolution 0.01 mA
Maximum 10 A
Resistance Accuracy* ± (0.9%+1)
Max. resolution 0.1 Ω
Maximum 50 MΩ
Capacitance Accuracy* ± (1.2%+2)
Max. resolution 1 nF
Maximum 10,000 µF
Frequency Accuracy* ± (0.1%+1)
Max. resolution 0.01 Hz
Maximum 100 kHz
Temperature Accuracy* ± (1.0%+10)
Max. resolution 0.1°C
Range -40°C/400°C

Note:
* Accuracies are best accuracies for each function

Environmental Specifications
Operating temperature -10°C to +50°C
Storage temperature -30°C to +60°C
Humidity (without condensation) 0% - 90% (0°C - 35°C)
0% - 70% (35°C -50°C)
Safety Specifications
Overvoltage category EN 61010-1 to 1000 V CAT III
EN 61010-1 to 600 V CAT IV
Agency approvals UL, CSA, TÜV listed and VDE Pending
Mechanical and General Specifications
Size 43 x 90 x 185 mm
Weight 420 g
Warranty Lifetime
Battery life Alkaline ~200 hours typical, without backlight



Fluke 322 True-rms Clamp Meter

Specifications
Voltage DC Range / Resolution 0 - 400 V / 0.1 V
0 - 600 V / 1 V
Accuracy 1% ± 5 counts
Voltage AC Range / Resolution 0 - 400 V / 0.1 V
0 - 600 V / 1 V
Accuracy 1.2% ± 5 counts (50 - 400 Hz)
AC Response Averaging
Current AC Range / Resolution 0 - 400 A / 0.1 A
0 - 40 A / 0.01 A
Accuracy 1.8% ± 5 counts (50 - 60 Hz)
3.0% ± 5 counts (60 - 400 Hz)
AC Response Averaging
Resistance Range / Resolution 0 - 400 Ω / 0.1 Ω
Accuracy 1% ± 5 counts
Continuity <= 30 Ω
Environmental Specifications
Operating Temperature -10°C to +50°C
Storage Temperature -30 ºC to +60 ºC
Operating Altitude 2,000 meters
Temperature De-rating Add 0.1 x specified accuracy for each ºC above 28ºC or below 18ºC
Safety Specifications
Safety Rating IEC 1010-2-032, 600V CAT III
Mechanical and General Specifications
Size 190 x 63 x 35 mm
Weight 230 g
Warranty Two years
Battery Life 100 hours typical (2 AAA carbon zinc)
Jaw Opening 25 mm




Do you have a Industrial Multimeter Service Combo Kit that needs to be calibrated?

We offer standard traceable calibration and ISO 17025 accredited calibration services.

Get your Industrial Multimeter Service Combo Kit calibrated today! Click Here!
