Soken DAC-HRI-3 TYPE 700 - Invertor Hot Line Coil Resistance Meter

Invertor Hot Line Coil Resistance Meter

Soken

Category : Hot line coil winding resistance meter

by quote only Add to Cart

Documents:
Datasheet

Overview
Features
Information
Calibration

DAC-HRI-3 TYPE 700 can measure resistances of coil windings of a motor driven by inverter power supply (PWM) during applying voltage (Max AC 700V).

Generally, either the temperature measuring method which measures a partial temperature by using temperature sensor, or the resistance method which measures resistance and converts it by using temperature coefficient, is introduced to temperature rise test of motor. DAC-HRI-3 TYPE 700, introducing the resistance method, can measure resistance of the coil windings directly, and obtain precise resistance values without turning off the power. The HOT LINE Resistance meter enables you to have the true temperature of a whole driven motor coil simply and efficiently.



Test Materials

  • EV Motor, HEV Motor
  • Brushless Motor
  • Compressor Motor for Air-Conditioner



Rerated Standard

  • JIS C4203 Single Phase induction motors
  • JEC 2137 Induction motor
  • JEC 60034-1 Rotating electrical machines - Part 1: Rating and performance



Principals

A DC-blocking capacitor is inserted to prevent flow of the DC measuring current into the AC power source, and the energizing AC voltage is applied to the coil, Lx, of the tested motor. A DC current from the DC constant current circuit of the Coil Resistance Meter is superimposed on the coil, Lx, and the voltage drop across the Lx is measured. The DC component of the measured voltage drop is extracted by using a low pass filter (LPF), and then the coil resistance is calculated and displayed. Because the LPF is composed of circuit elements, a CPU-based digital filter is used to eliminate inverter noises.



Conversion to temperature

Usually, 1/α0 = 234.5, where α0 is the temperature coefficient at 0ºC, is used for the conversion to temperature as described in the following formula.

tc = Rt – Rt0 / Rt0 (234.5 + t0) + t0
∆t = tc-te
tc = Converted Temperature ( Tc )
∆t = Temperature Rise ( ∆T )
te = Ambiant Temperature ( Te )
Rt = Measured Electrical Resistance ( R )
Rt0 = Initial Resistance ( R0 )
t0 = Initial Temperature ( T0 )


Free-Software

Conversion to Temperature is possible by input the Initial Resistance value and initial Temperature value through PC by using a free-software. Measured values with time are saved and displayed in an Excel Sheet.



DC Blocking Capacitors Box

DC Blocking Capacitor must be required for measurement under energized. An appropriate capacitor must be selected in accordance with the rated current of specimen.

  • Capacitor: Electrolytic Capacitor
  • Maximum-allowed-current value:
    • 470µF …2A
    • 4,700µF …7A
    • 47,000µF …23A
    • 330,000µF …45A

Model DAC-C23AXC7A (For 3 Phase 23A/7A)

Optional Capacitors for single phase, 3-phase, and large current specification etc, are also available.



Necessity of Hot-Line resistance measurement

During the temperature rise test of a coil, in particular, a coil of small-size equipment cools rapidly once de-energized, and so its resistance changes considerably. In other words, it is very difficult to accurately measure the coil resistance of a running motor. In the case of the coil of a motor that is equipped with a fan, the motor exterior is cooled by the fan, but the temperature of the coil inside the motor can be much higher. In this case, the motor temperature that is measured externally with, for example, a thermistor, can be much different from the temperature of the coil. The traditional “measurement of coil resistance after shutdown” is based on the assumption that the temperature rises and falls in accordance with natural logarithm, but the assumption often fails for products of complicated structure, and differences or errors are inevitable in inferring the coil resistance under the energized state from that under the de-energized state. Therefore, hot-line resistance measurement is an ideal method for correct measurement of coil resistances.

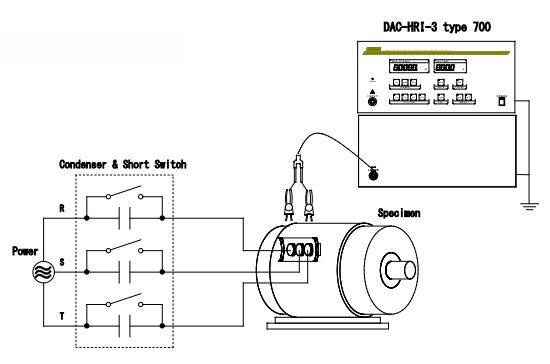

Connecting Diagram



Option Switching Box with Software for AUTO 3-phase measurement

Automatic 3-phase measurement is available with option Switching Box.

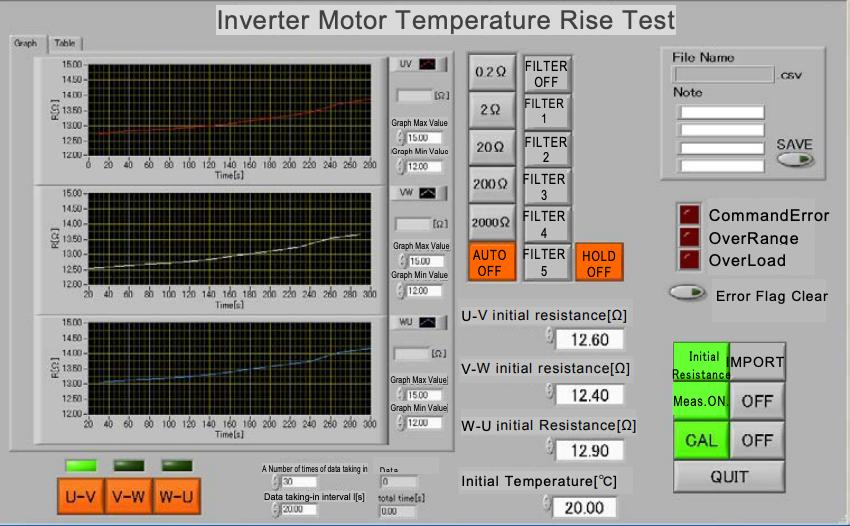

Auto Measuring Software (PC display image)



  • Continuous Measurement to obtain Temperature Rise – Cooling Curve.
  • Automatic switchover of 3-phase (U-V, V-W, U-W).
  • Data acquisition of 1 selected phase at minimum sampling time.
  • Time Interval and a number of times of import data are configurable.
  • Conversion to Temperature only by input the Initial Resistance value and initial Temperature value.



Connecting Example





Soken DAC-HRI-3 TYPE 700 - Invertor Hot Line Coil Resistance Meter

Test Materials

  • EV Motor, HEV Motor
  • Brushless Motor
  • Compressor Motor for Air-Conditioner



Rerated Standard

  • JIS C4203 Single Phase induction motors
  • JEC 2137 Induction motor
  • JEC 60034-1 Rotating electrical machines - Part 1: Rating and performance



General

Testing VoltageMax AC700V*
Frequency10 - 400Hz
InterfaceRS232C
Analog OutputDC0-2V
Power SourceAC100V-240V±10% 50/60Hz
Option itemsDC Blocking Capacitors for 3-phase (Max 600A)
3-phase switching box with auto calculating software (CD-ROM)
RS-232C cable and RS-232C-USB Convertor

*For test Max 450V, model DAC-HRI-3 is available.



Measuring Range

0.2Ω Range0-0.2000Ω (Superimposed Current DC100mA)
2Ω Range0-2.000Ω (Superimposed Current DC100mA)
20Ω Range0-20.00Ω (Superimposed Current DC10mA)
200Ω Range0-200.0Ω (Superimposed Current DC1mA)
2000Ω Range0-2000Ω (Superimposed Current DC0.1mA)



Resolution

Voltage Meter0.1V
Resistance Meter0.1mΩ (0.2ΩRange)



Display

Voltage Meter4 digit
Resistance Meter4 digit 2000FS



Accuracy

2Ω / 20Ω / 200Ω±0.3% FS
0.2Ω Range±0.5% FS



Input Impedance

0.2Ω / 2Ω RangeApprox. 1.5kΩ
20Ω RangeApprox. 15kΩ
200Ω RangeApprox. 150kΩ
2000Ω Range Approx. 1500kΩ



Dimensions

DAC-HRI-3 TYPE 700 Main UnitW430×H200×D385mm Approx. 20kg
Adaptor unit for Max AC700VW430xH200xD385mm Approx. 10kg
