GW Instek introduces ASR-2000 Series Programmable AC/DC Power Source
Posted on January 15 2020The ASR-2000 series, an AC DC power source aiming for system integration or desktop applications, provides both rated power output for AC output and rated power output for DC output. Nine ASR-2000 output modes are available, including 1) AC power output mode (AC-INT Mode), 2) DC power output mode (DC-INT Mode), 3) AC/DC power output mode (AC DC-INT Mode), 4) External AC signal source mode (AC-EXT Mode), 5) External AC/DC signal source mode (AC DC-EXT Mode), 6) External AC signal superposition mode (AC-ADD Mode), 7) External AC/DC signal superposition mode (AC DC-ADD Mode), 8) External AC signal synchronization mode (AC-SYNC Mode), 9) External AC/DC signal synchronization mode (AC DC-SYNC Mode).
The ASR-2000 series provides users with waveform output capabilities to meet the test requirements of different electronic component development, automotive electrical devices and home appliance, including 1) Sequence mode generates waveform fallings, surges, sags, changes and other abnormal power line conditions; 2) Arbitrary waveform function allows users to store/upload user-defined waveforms; and 3) Simulate mode simulates power outage, voltage rise, voltage fall, and frequency variations. When the ASR-2000 series power source outputs, it can also measure Vrms, Vavg, Vpeak, Irms, Iavg, Ipeak, IpkH, P, S, Q, PF, CF, 40th-order Voltage Harmonic and Current Harmonic. In addition, the Remote sense function ensures accurate voltage output. The Customized Phase Angle for Output On/Off function can set the starting angle and ending angle of the voltage output according to the test requirements. V-Limit, Ipeak-Limit, F-Limit, OVP, OCP, OPP function settings can protect the DUT during the measurement process. In addition to OTP, OCP, and OPP protection, the ASR-2000 series also incorporates the Fan fail alarm function and AC fail alarm function.

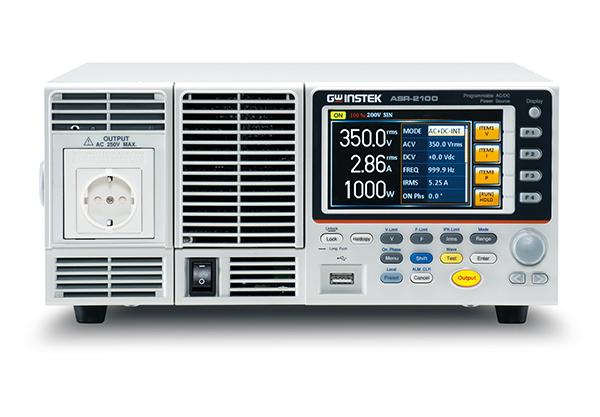

The front panel of the ASR-2050/2100 provides a universal socket or a European socket, which allows users to plug and use so as to save wiring time. The ASR-2050R/2100R is 3U height and 1/2 Rack width design, which is compatible with ATS assembly. The ASR-2000 series supports I/O interface and is equipped with USB, LAN, External I/O and optional RS-232C and GPIB.
ASR-2100R - 1000VA Programmable AC/DC Power Source for 3U 1/2 Rack Mount -- COPY
by quote only (USD) Output Rating: AC 0 – 350 Vrms, DC 0 - ± 500 V; Output Frequency up to 999.9 Hz; DC Out...
ASR-2100R - 1000VA Programmable for 3U 1/2 Rack Mount
by quote only (USD) Output Rating: AC 0 – 350 Vrms, DC 0 - ± 500 V; Output Frequency up to 999.9 Hz; DC Out...
ASR-2050R - 500VA Programmable for 3U 1/2 Rack Mount
by quote only (USD) Output Rating: AC 0 – 350 Vrms, DC 0 - ± 500 V; Output Frequency up to 999.9 Hz; DC Out...
ASR-2100 - 1000VA Programmable
by quote only (USD) Output Rating: AC 0 – 350 Vrms, DC 0 - ± 500 V; Output Frequency up to 999.9 Hz; DC Out...
ASR-2050 - 500VA Programmable
by quote only (USD) Output Rating: AC 0 – 350 Vrms, DC 0 - ± 500 V; Output Frequency up to 999.9 Hz; DC Out...
