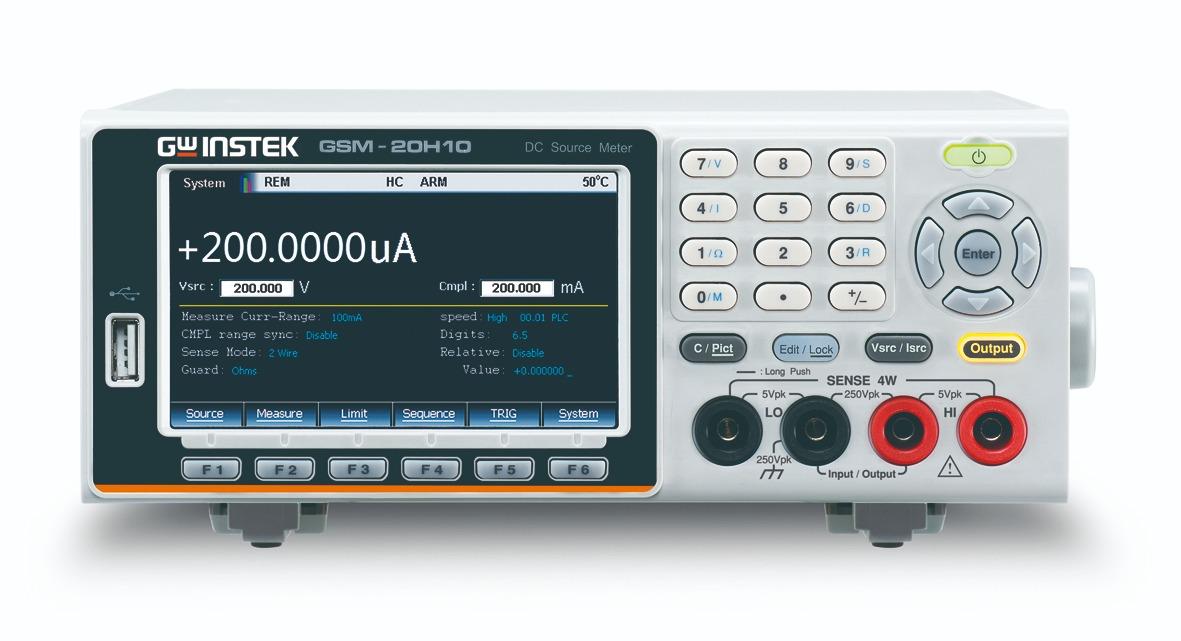

GW Instek all new GSM-20H10 Precision DC Source Meter



GW Instek all new GSM-20H10 Precision DC Source Meter



GW Instek, a professional electronic T&M instrument manufacturer, announced that it has launched the new GSM-20H10 precision DC source meter to officially enter the source meter equipment market in order to showcase GW Instek's extensive experience in power measurement applications, and the combined technological advantages of developing 6 1/2 DMM. By launching this product, GW Instek will compete with Keithley, NI, and Keysight source meter manufacturers to grab the semiconductor component testing market so as to provide engineers with digital source meters of high precision, high measurement speed and best cost performance ratio.

The demand for source meters in the measurement equipment market is relatively high and the application is quite extensive. It is indispensable for the semiconductor component industry demanding highest standards of measurement accuracy, speed, and efficiency to have a high-precision test and measurement instrument that combines practical functions from a DMM, power supply, precision source, and electronic load. The brand new GSM-20H10 series digital source meter has a power supply and measurement range of ±210V / ±1.05A / 22W, providing an accurate measurement accuracy of 0.012% and the 6 1/2-digit high-resolution DMM function provides the highest measurement accuracy of 1uV/10pA.

The GSM-20H10 can not only provide accurate voltage and current, but also measure the characteristics of batteries, semiconductors, and various electronic materials. For resistance measurements, the series has the maximum 6-wire measurement function to measure more accurate values compared with the general source meters that only support 4-wire measurement. In terms of sampling rate, GSM-20H10 has a sampling rate of up to 50k points per second, which can accurately analyze the characteristics of the DUT.

Furthermore, GSM-20H10 is equipped with a large 4.3-inch display, which can fully display all measurement settings, parameters and results on the screen. It supports the SDM (Source Delay Measure) function, which can delay sampling when the signal changes so as to prevent misjudgment from the unstable signals being captured. The four built-in sequence output modes (Stair, Log, SRC-MEM, Custom) can support up to 2500 points of sequence change output.

In terms of protection, GSM-20H10 provides OVP/OTP modes. In the design of OVP, engineers can customize the range of OVP, and OTP can effectively prevent errors caused by temperature drift during the test process. For interfaces, the series supports standard SCPI commands and provides GPIB, RS-232, USBTMC, and LAN, which can meet the testing needs of engineers with different interface requirements.

Andy Liu, Manager of Marketing Technology Division of GW Instek Business Development Department, said that GSM-20H10 is a precision DC source meter that is “originated from precision and surpassing efficiency", which will effectively provide engineers with a stable voltage/current source, as well as high accurate voltage/current measurement values to shorten product testing time and accelerate new product launch process.

For more information, please review the following product pages:

GSM-20H10G - Precision DC Source Meter with GPIB

Precision source meter with 6 1/2 digit multimeter, DC Power, Voltmeter, Ammeter and more

$5,498 (USD)

Precision source meter with 6 1/2 digit multimeter, DC Power, Voltmeter, Ammeter and more...

View Product

GSM-20H10 - Precision DC Source Meter

Precision source meter with 6 1/2 digit multimeter, DC Power, Voltmeter, Ammeter and more

$5,193 (USD)

Precision source meter with 6 1/2 digit multimeter, DC Power, Voltmeter, Ammeter and more...

View Product
