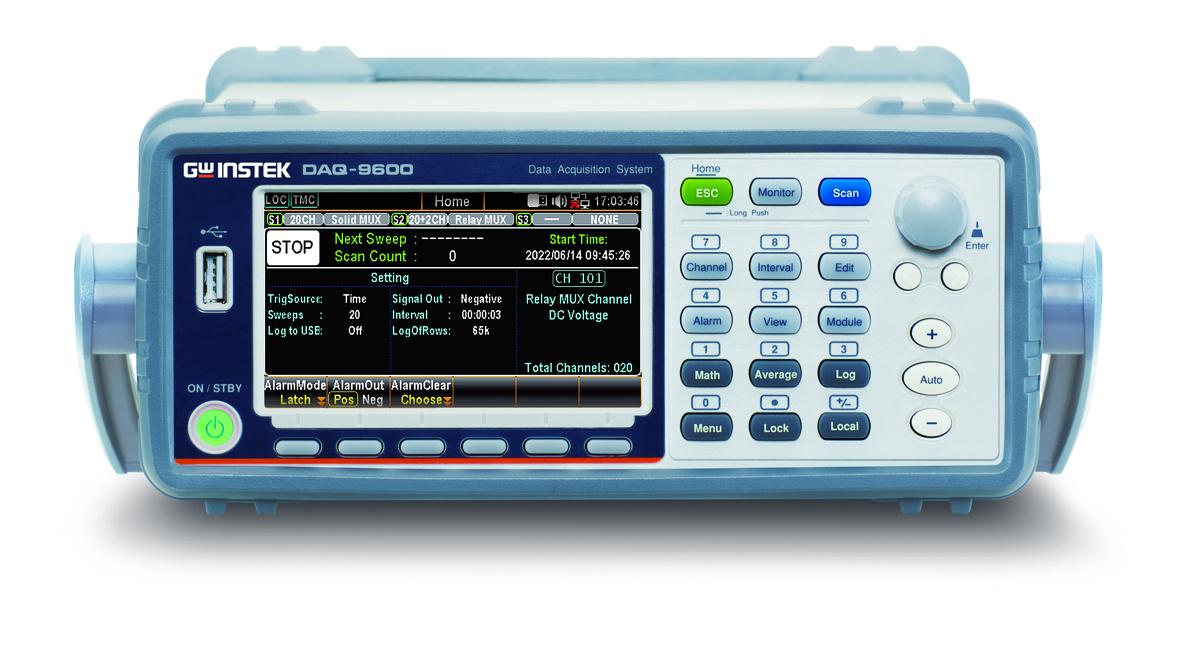

GW Instesk Introduces the DAQ-9600 Data Acquisition System with up to 5 optional modules to choose from.



GW Instek, a professional T&M instrument manufacturer, rolled out the new DAQ-9600 Data Acquisition System on September 28th, 2023. This system features the highly regarded 6 1/2 digit digital multimeter technology from the GDM-9061, equipped with 3 module slots in the mainframe and a selection of 5 optional modules. The system offers a maximum voltage measurement capability of up to 600V (DAQ-909). With the ability to expand and adapt to various measurement needs, it is a highly flexible and efficient modular data acquisition system.



The modular structure of the DAQ-9600 includes General-Purpose Modules (DAQ-900/DAQ-901), Multifunction Modules (DAQ-903), Matrix Modules (DAQ-904), and High Voltage/High Current Modules (DAQ-909). Users can freely combine these modules according to their measurement requirements, achieving maximum flexibility by expanding the channels to 60 two-wire channels, 120 single-ended channels, or 96 matrix crosspoints.



The DAQ-9600 can convert 14 input signals, including temperature (RTD/thermocouple/thermistor), voltage (AC/DC), current (AC/DC), resistance (two-wire/four-wire), Strain (direct/bridge), frequency/period, and capacitance. The built-in 6 1/2 digital DMM provides basic accuracy of 0.0035% DC voltage, 0.06% AC voltage, and 0.01% resistance within a one-year calibration cycle.



The acquired data by the DAQ-9600 can be directly stored in the internal memory or on a USB drive without connecting to a PC. For remote setting and control of data logging applications, the DAQ-9600 is equipped with LAN, USB and GPIB (optional), and provides free DAQ-Data Logger software to simplify data collection and analysis, allowing users to easily collect data. In addition, the LAN interface can be used to configure measurements, define and execute scan lists through common web browsers (such as Chrome, IE). Users can monitor the measurement results no matter where they are as long as they are connected to the Internet.



Andy Kung, Deputy Manager of GW Instek Product Marketing Division, stated that the DAQ-9600 is a data acquisition system that meets the market's measurement needs. It offers easy expansion, high measurement accuracy, and low learning costs when transitioning. Whether you're a product developer responsible for analyzing product characteristics or a manufacturing professional handling system testing and fault diagnosis, the DAQ-9600 can enhance measurement efficiency. It makes integration, switching, measurement, and analysis easy, making it an excellent choice for users who consider both price and performance.



DAQ-9600 (Mainframes)

DAQ-9600 - Data Acquisition System (Mainframe)

modularized data acquisition system with high flexibility and higher performance.

$1,740 (USD)

modularized data acquisition system with high flexibility and higher performance....

View Product

DAQ-9600G - Data Acquisition System (Mainframe) with GPIB

modularized data acquisition system with high flexibility and higher performance.

$2,180 (USD)

modularized data acquisition system with high flexibility and higher performance....

View Product





DAQ-9600 (Modules)

DAQ-900 - 20 Channel Universal Multiplexer (Solid State Relay) for DAQ-9000 Series Data Acquisition System

20 ch Multiplexer for DAQ-9000 Series Data Acquisition System

$720 (USD)

20 ch Multiplexer for DAQ-9000 Series Data Acquisition System...

View Product

DAQ-901 - 20+2 (Current) Channels Universal Multiplexer (Armature Relay) for DAQ-9600 Series Data Acquisition System

20 ch Multiplexer   2 ch current for DAQ-9600 Series Data Acquisition System

$490 (USD)

20 ch Multiplexer 2 ch current for DAQ-9600 Series Data Acquisition System...

View Product

DAQ-903 - 40 Channel Single-ended Multiplexer Module for DAQ-9600 Series Data Acquisition System

40 ch Single-Ended Mux for DAQ-9600 Series Data Acquisition System

by quote only (USD)

40 ch Single-Ended Mux for DAQ-9600 Series Data Acquisition System...

View Product

DAQ-904 - 4 x 8 Two-Wire Matrix Module for DAQ-9600 Series Data Acquisition System

4 x 8 Matrix for DAQ-9600 Series Data Acquisition System

$537 (USD)

4 x 8 Matrix for DAQ-9600 Series Data Acquisition System...

View Product

DAQ-909 - 8 + 2 Channels High Voltage (DC 600V) High Current(2A) Multiplexer for DAQ-9600 Series Data Acquisition System

8 ch HV Multiplexer   2 ch current for DAQ-9600 Series Data Acquisition System

$610 (USD)

8 ch HV Multiplexer 2 ch current for DAQ-9600 Series Data Acquisition System...

View Product
