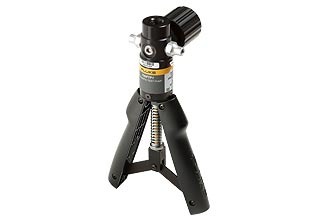

Fluke 700PTP-1 - Pneumatic Test Pump

Pneumatic Test Pump

Fluke

Category : Accessories

by quote only Add to Cart

Documents:

Overview
Features
Information
Calibration

The Fluke-700PTP-1 pneumatic test pump is capable of supplying pressures up to 600 psi, 40 bar.

For use with 700 series pressure modules or test gauges. Can be directly connected to the reference port consolidating two separate pieces when performing pressure calibration and testing. Can also be used with 717 pressure calibrators. Ideal for calibrating pressure transmitters, pressure switches and pressure gauges up to 600 PSI/40 bar.



  • Pump can be easily cleaned without disassembly
  • The vernier can be used as a stand-alone low pressure calibration source
  • Two pressure ports allowing simultaneous connection:
    • ¼” NPT female fitting for the reference gauge or pressure module
    • ¼” NPT female fitting for the unit under test
  • Adjustable stroke length can be set to limit the pressure per stroke



Mechanical and General Specifications
Size Length 8.7 in (220 mm), width 4.8 in (122 mm), depth 3.5 in (89 mm)
Weight 1.03 lb (467 g)
Warranty One year
Material Wetted materials: aluminum, silicon, neoprene, stainless steel, Buna-N
