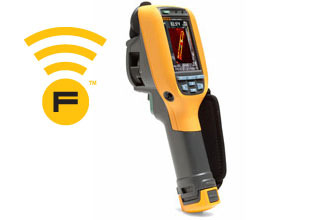

Fluke FETI110-30HZ - 30Hz Infrared Camera
An Infrared camera that single handedly blends digital and infrared images
Save time and money identifying problems with the Ti110, a thermal imaging camera, before they become costly failures. The Ti110 includes Fluke's exclusive point and shoot IR-Fusion® technology – the blending of digital and infrared images into a single image making precise documentation quick and easy. With sensitivity of ≤0.10⁰C at 30⁰ C (100 mK) temperature ranges from -20⁰C to 250 ⁰C (-4⁰F to +482⁰F) the Ti110 is suited for most industrial applications; for higher thermal sensitivity see the Fluke Ti125.
Capture the whole story with voice annotation and additional digital images
Quickly identify and keep track of inspection locations by adding up to three additional digital images (IR-PhotoNotes™) that will help you reference the location or unique situations at the inspection site. An electronic 8-point Cardinal Compass easily communicates the inspection site location and voice annotation makes pen and paper no longer necessary.
Capture up to five additional measurements wirelessly
The Ti110 includes CNX™ multi-tool connectivity allowing five additional measurements to be captured via Fluke CNX AC current, voltage and iFlex clamp modules.
As always, Fluke SmartView® Software is included at no additional charge with all Fluke infrared cameras.
- Exclusive IR-OptiFlex™ focus system - ensures that images are in good focus from 1.2 meters (4 feet) and beyond for optimum image clarity and scanning convenience. For shorter distances change to manual mode with the touch of a finger.
- Always have references handy - IR-PhotoNotes™ annotation system - Quickly identify and keep track of inspection locations by adding digital images of important information and surrounding areas.
- Find problems faster and easier IR-Fusion® technology
- Capture current measurements fast and conveniently from up to five wireless modules at once using your Fluke thermal imaging camera and CNX wireless modules.
- Multi-mode video recording - focus-free video in visible light and infrared with IR-Fusion.
- Easily communicate the location of problems with the Electronic Compass (8-Point Cardinal).
Spend less time finding problems and more time solving them with the rugged and easy to use Ti110.
| Detailed Specifications | |
| IR resolution (FPA size) | 160 x 120 FPA Uncooled Microbolometer |
| Spectral band | 7.5 µm to 14 µm (long wave) |
| Capture or refresh rate | 9 Hz or 30 Hz versions |
| NETD (thermal sensitivity) | ≤0.10 °C at 30 °C target temp (100 mK) |
| FOV (field of view) | 22.5 °H x 31 °V |
| IFOV (spatial resolution) | 3.39 mRad |
| Temperature measurement range (not calibrated below -10 °C) | -20 °C to + 250 °C (-4 °F to 482 °F) |
| Temperature measurement accuracy | ± 2 °C or 2 % (at 25 °C nominal, whichever is greater) |
| Focus mechanism | IR-OptiFlex™ focus system |
| IR Fusion® technology | PIP, full IR, full visible |
| CNX wireless enabled | Yes |
| Color alarms | High temperature |
| Standard palettes | Blue-red, grayscale, inverted grayscale, high-contrast, hot metal, ironbow, amber, inverted amber |
| Ultra Contrast™ palettes | Blue-Red, Grayscale, Ironbow |
| Hot/cold markers | — |
| User definable spot markers | Three on camera and in SmartView |
| Centerbox (MIN/AVG/MAX) | — |
| Level and span control | Manual and auto |
| Minimum span in auto mode | 5 °C |
| Minimum span in manual mode | 2.5 °C |
| Minimum IR focus distance | 15.25 cm (6 in) |
| Weight | 0.726 kg (1.6 lb) |
| Size | 28.4 x 8.6 x 13.5 cm (11.2 x 3.4 x 5.3 in) |
| LCD display | 3.5 inch diagonal (portrait format) |
| Visible camera | 2 megapixel industrial-grade |
| Minimum automatic parallax correction | ~18-22 inches |
| IR-PhotoNotes™ annotation system | Yes (3 images) |
| Laser pointer | Yes |
| Torch | Yes |
| Electronic (cardinal) compass | Yes |
| Emissivity correction | Yes |
| Transmission correction | Yes |
| Background (reflected) compensation | Yes |
| Voice annotation (audio) | Yes (60 seconds) per image |
| Multi-mode video output | — |
| Multi-mode video recording (standard AVI with MPEG encoding) | Yes (AVI with MPEG encoding, up to 5 minutes) |
| Multi-mode video recording (radiometric .IS3) | — |
| Memory review | Thumbnail review |
| Battery (field-replaceable, rechargeable) | One |
| Battery life | 4+ hours (each)* |
| External battery charging base | Optional (accessory) |
| Charging power supply | Yes |
| Drop test | 2 meter (6.5 feet) |
| Ingress protection (IP) rating (IEC 60529) | IP 54 |
| Recommended calibration cycle | Two-years |
| Multifunction card reader | — |
| Memory storage | 2 GB SD memory card |
| Direct download capability | Mini USB download direct to PC |
| Operating temperature range | -10 °C to +50 °C (14 °F to 122 °F) |
| Storage temperature range | -20 °C to +50 °C (-4 °F to 122 °F) |
| Operating humidity | Operating and storage 10 % to 95 %, non-condensing |
| Vibration and shock | 2G, IEC 68-2-26 and 25G, IEC 68-2-29 |
| Safety standards | CSA (US and CAN): C22.2 No. 61010-1-04, UL: UL STD 61010-1 (2nd Edition), ISA: 82.02.01 |
| C Tick | IEC/EN 61326-1 |
| EMI, RFI, EMC | EN61326-1; FCC Part 5 |
| User manuals | Czech, English, Finnish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, Dutch, and Hungarian |
| Standard warranty period | Two-years |
| Extended warranty and service plans | Yes |
| *Assumes 50% brightness of LCD | |
