Fluke Ti400 PRO - Infrared Camera

Infrared Camera

Fluke

Category : Infrared Thermometers / Cameras

by quote only Add to Cart

Documents:
Datasheet

Overview
Features
Information
Calibration

Increased sensitivity to visualize differences

  • Capture smaller temperature differences with increased thermal sensitivity
    Row of pipes, taken with manual focus
    Old screen clarity versus the new sharper screen image

Easier to visualize and diagnose issues

  • Sharper onscreen images with better visual color differentiation
  • Display deviations from standard temperatures and communicate issues with your team using multiple Delta-T markers - choose one as a reference point and the others to display a value as a difference
  • Multiple rectangle markers in-camera - identify min/max temperatures for an area of the equipment or an equipment array
  • Distinguish heat differences more easily with a new palette and a wider array of yellows and greens in the display

New intuitive user interface

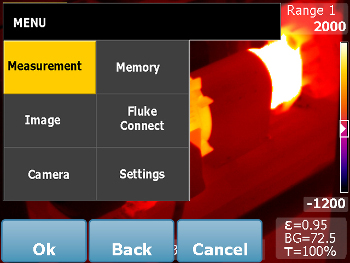

Old user interface

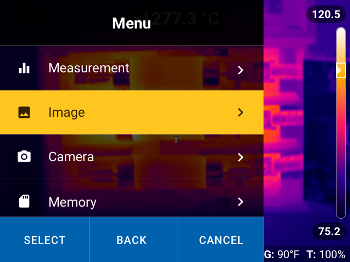

More intuitive visual interface

  • Improved, user-tested, touch screen interface leverages current styles and is more intuitive than ever

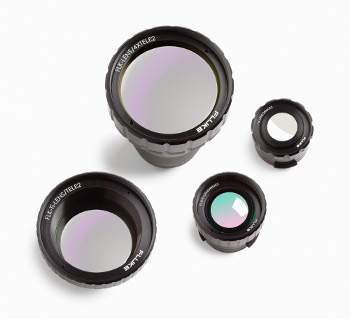

More flexibility to visualize targets -  tiny to large

  • Now compatible with all Fluke infrared smart lenses
  • Macro, telephoto and wide angle – from tiny to large, capture your target
  • Fluke smart lenses are interchangeable between compatible cameras without calibration
  • Compatible with telephoto, wide-angle and macro smart lenses

2 motors, taken with manual focus


With the Ti480 PRO, worry about focus is obsolete. MultiSharp™ focus captures images that are focused throughout the field of view, even if you start from a completely blurry target. The camera takes multiple images and combines them to give a clear, accurate focus on targets near and far. See more detail with SuperResolution, offering 4x the pixel data. Using the software and SuperResolution you can view images with up to 1280 x 960 resolution.

Save time with the Fluke Connect® system

You can wirelessly sync images directly from your camera to the Fluke Connect® system, and attach it to an asset record or work order. Having access to maintenance records simultaneously at the inspection site and from the office or an off-site location enables faster decision making and real time collaboration between team members. You can also live stream the camera display to your smartphone or PC and remotely control the camera.

Technician reviewing measurements from Fluke Connect® tools on smartphone
Capture and save measurements from your wireless-enabled test
tools to the Fluke Connect® app on your smartphone.
Comparing two IR images on Fluke Connectâ„¢ Assets software
Asset analysis dashboard: Easily compare complex data.
  • Increased sensitivity to visualize temperature differences
  • Easier to visualize and diagnose issues with sharper onscreen images, multiple rectangle markers and 9 color palettes
  • More intuitive visual interface, improved, user-tested, touch screen interface
  • More flexibility to visualize target, tiny-to-large with interchangeable smart lenses - no calibration required, 2x and 4x telephoto, wide angle and macro lens compatibility
  • Capture a clear, accurate image focused throughout the field of view with MultiSharp™ Focus
  • Get an instant in-focus image of your designated target. LaserSharp® Auto Focus uses a built-in laser distance meter that calculates and displays the distance from your designated target.
  • Get 4x the pixel data with SuperResolution, which captures multiple images and combines them to create a 1280 x 960 image
  • Save time - wirelessly sync images directly from your camera to the Fluke Connect® system, and attach to an asset record or work order
  • Reduce the need take notes in the field with IR-PhotoNotes™ and voice annotations

Key Features

IFOV with standard lens (spatial resolution)0.93 mRad, D:S 1065:1
Detector resolution640 x 480
SuperResolutionCaptures and combines 4x the data to create a 1280 x 960 (614,400 pixels) image
Infrared Resolution307,200 pixels
MultiSharp™ FocusYes, focused near and far, throughout the field of view
LaserSharp® Auto FocusYes, for consistently in-focus images. Every. Single. Time.
Laser distance meterYes, calculates distance to the target for precisely focused images and displays distance on screen
Advanced manual focusYes
Ruggedized touchscreen display3.5 inch (landscape) 640 x 480 LCD
Rugged, ergonomic design for one-handed useYes
Digital zoom2x and 4x

Temperature measurement

Temperature measurement range (not calibrated below -10 °C) ≤-10 °C to +1000 °C (14 °F to 1832 °F)
Accuracy±2 °C or 2% (at 25 °C nominal, whichever is greater)
Thermal sensitivity (NETD)*≤0.05 °C at 30 °C target temp (50 mK)
On-screen emissivity correctionYes (both value and table)
On-screen reflected background temperature compensationYes
On-screen transmission correctionYes

Wireless connectivity

Fluke Connect® app compatibleYes, connect your camera to your smartphone, and images taken automatically upload to the Fluke Connect® app for saving and sharing
Fluke Connect® Assets optional softwareYes, assign images to assets and create work orders. Easily compare measurement types - whether mechanical, electrical or infrared images - in one location.
Fluke Connect® tool compatibleYes, connects wirelessly to select Fluke Connect® enabled tools and displays measurements on camera screen. Five simultaneous connections supported.

IR-Fusion® technology

AutoBlend™ modeMin, Mid, Max IR plus full visible on camera; continuously variable in software
Picture-In-Picture (PIP)Yes
Built-in digital camera (visible light)5MP

Lenses

Standard Lens
IFOV (spatial resolution)0.93 mRad, D:S 1065:1
Field of view34 °H x 24 °V
Minimum focus distance15 cm (approx. 6 in)
IR-Fusion® technologyPicture-in-picture and full screen
Optional 2x telephoto smart lens
IFOV (spatial resolution)0.65 mRad, D:S 1529:1
Field of view12 °H x 9 °V
Minimum focus distance45 cm (approx. 18 in)
IR-Fusion® technologyPicture-in-picture and full screen
Optional 4x telephoto smart lens
IFOV (spatial resolution)0.33 mRad, D:S 2941:1
Field of view6 °H x 4.5 °V
Minimum focus distance45 cm (approx. 18 in)
IR-Fusion® technologyPicture-in-picture and full screen
Optional wide-angle smart lens
IFOV (spatial resolution)2.62 mRad, D:S 377:1
Field of view46 °H x 34 °V
Minimum focus distance15 cm (approx. 6 in)
IR-Fusion® technologyFull screen
Level and spanSmooth auto and manual scaling
Fast auto toggle between manual and auto modes Yes
Fast auto-rescale in manual modeYes
Minimum span (in manual mode)2.0 °C (3.6 °F)
Minimum span (in auto mode)3.0 °C (5.4 °F)

monkey

power ranger

Data storage and image capture

Extensive memory optionsRemovable 4 GB micro SD memory card, 4 GB internal flash memory, save to USB flash drive capability, upload for permanent storage
Image capture, review, save mechanismOne-handed image capture,review, and save capability
Image file formatsNon-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2); no analysis software required for non-radiometric (.bmp, .jpg and .avi) files
Memory reviewThumbnail and fullscreen review
SoftwareSmartView® full analysis and reporting software with access to the Fluke Connect system
Export file formats with SmartView® softwareBitmap (.bmp), GIF, JPEG, PNG, TIFF
Voice annotation60 seconds maximum recording time per image; reviewable playback on camera, optional bluetooth headset available but not required
IR-PhotoNotes™Yes (5 images)
Text annotationYes
Video recordingStandard and radiometric
File formats videoNon-radiometric (MPEG - encoded .AVI) and fully-radiometric (.IS3)
Streaming video (remote display)Yes, see the live stream of the camera display on your PC, smartphone, or TV monitor. Via USB, WiFi hotspot, or WiFi network to SmartView® software on a PC; via WiFi hotspot to the Fluke Connect® app on a smartphone; or via HDMI to a TV monitor
Remote control operationYes, through SmartView® software or Fluke Connect® mobile app
Auto capture (temperature and interval)Yes

Battery

Batteries (field-replaceable, rechargeable)Two lithium ion smart battery packs with five-segment LED display to show charge level
Battery life2-3 hours per battery (*Actual life varies depending on settings and usage)
Battery charge time2.5 hours to full charge
Battery charging systemTwo-bay battery charger or in-imager charging. Optional 12 V automotive charging adapter
AC operationAC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz)
Power savingUser selectable sleep and power off modes

Color Palettes

Standard palettes9: Rainbow, Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted
Ultra Contrast™ palettes9: Rainbow, Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted

General specifications

Frame rate60 Hz or 9 Hz versions
Laser pointerYes
LED light (torch)Yes, improved output torch
Color alarms (temperature alarms)High temperature, low temperature, and isotherms (within range)
Center-point temperature measuremenYes
Spot temperatureHot and cold spot markers
User-definable spot markers3 user-definable spot markers
Center boxUp to 3 expandable-contractible measurement box with MIN-MAX-AVG temp display
Infrared spectral band7.5 μm to 14 μm (long wave)
Operating temperature-10 °C to +50 °C (14 °F to 122 °F)
Storage temperature-20 °C to +50 °C (-4 °F to 122 °F) without batteries
Relative humidity10% to 95% non-condensing
SafetyIEC 61010-1: Overvoltage category II, Pollution Degree 2
Electromagnetic compatibilityIEC 61326-1: Basic EM environment. CISPR 11: Group 1, Class A
Australian RCMIEC 61326-1
US FCCCFR 47, Part 15 Subpart B
Vibration0.03 g2/Hz (3.8 g), 2.5 g IEC 68-2-6
Shock25 g, IEC 68-2-29
DropEngineered to withstand 2 meter (6.5 feet) drop with standard lens
Size (H x W x L)27.7 x 12.2 x 16.7 cm (10.9 x 4.8 x 6.5 in)
Weight (battery included)1.04 kg (2.3 lb)
Enclosure ratingIEC 60529: IP54 (protected against dust, limited ingress; protection against water spray from all directions)
WarrantyTwo-years (standard), extended warranties are available
Recommended calibration cycleTwo-years (assumes normal operation and normal aging)
Supported languagesCzech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish
