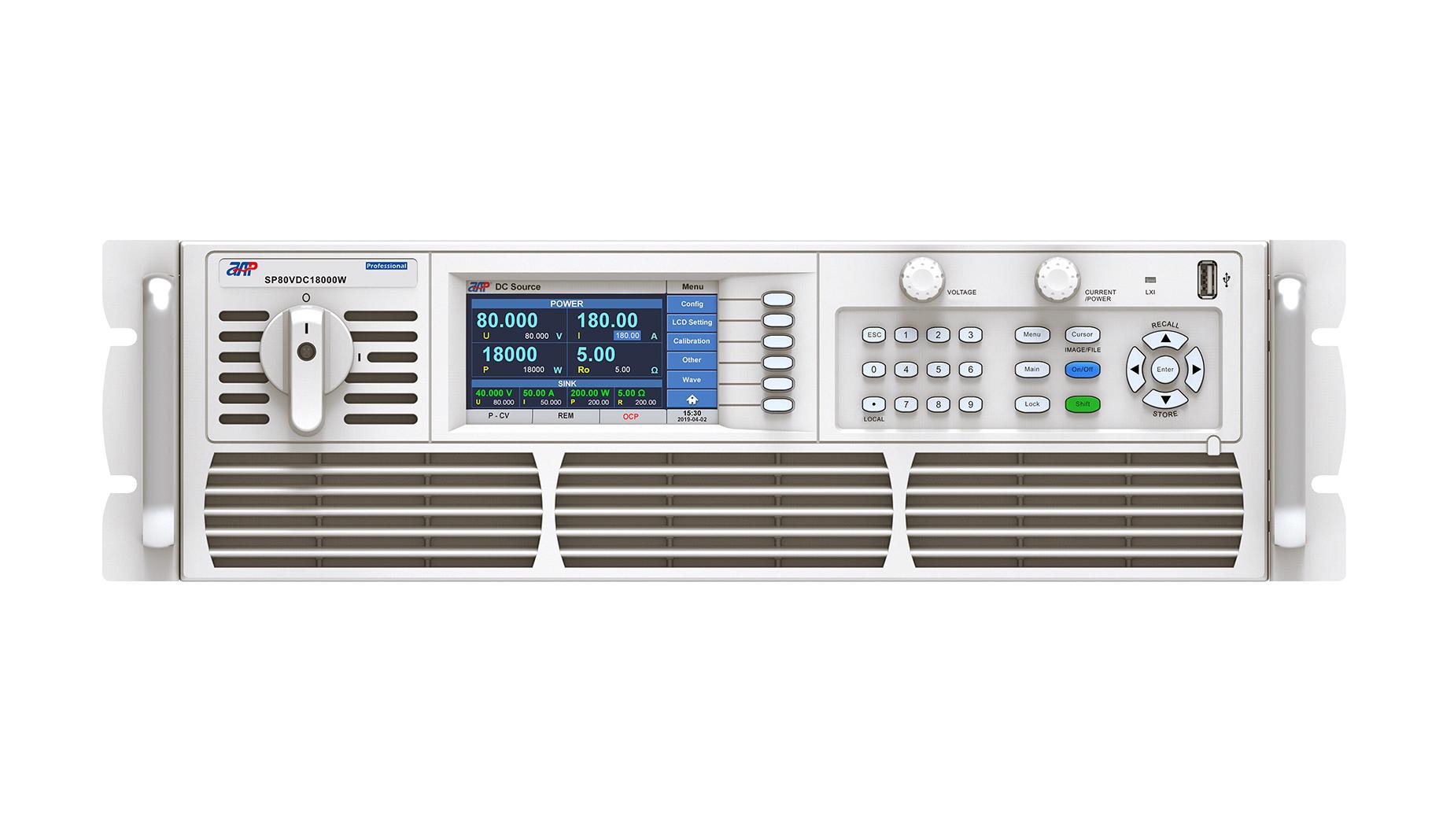

APM SP80VDC12000W - 12000W High Power Programmable DC Power Supply

12000W High Power Programmable DC Power Supply

APM

Category : Power Supplies

by quote only Add to Cart

Documents:
Datasheet

Overview
Features
Information
Calibration

Graphical User Interface

The large color touch screen provides simple and fast operation for customers, real-time update of display output data and power status.
The actual values are displayed with bigger characters, so they can be read from a large distance.



Wide Input Voltage Range & High Power Density

3-phase input voltage range 187~460Vac meets worldwide power distribution regulation. 36kW/6U high density, higher efficiency, lower ripple and fast response make it ideal for test requirements in different periods of different applications. This series power supply can have from one to three internal 6kW power blocks, each of which is connected across a separate phase of the 3-phase AC mains. The following figures illustrate how to install three 6kW units or three 12kW units to obtain a balanced current draw on the 3-phase AC mains.


CC & CV Priority

This series power supply provides CC/CV priority function allows the user to select suitable mode correspond to test requirement, let the output be voltage high speed or current no overshoot mode. Below shows an application of CC priority to avoid current overshoot during LED test.



Adjustable Voltage/Current Slew Rate

This series power supply provides adjustable rise and fall time setting for voltage and current. Adjustable time range 1ms~24h.



Continuous Source & Sink Function(optional)

Additionally to the Source mode, this series power supply is equipped with electronic load, also called Sink mode, to absorb power, that enables it work as a two-quadrant power supply. The switchover between these two operating modes occurs without interruption and time loss, thus avoiding overshoot of voltage or current. As a power supply, CV, CC, CP modes are available. As an electronic load, CV, CC, CP and CR mode are available. Thus making it suitable for inductive load and capacitive load testing.





With APM DC E-load To Expand Loading Capability

If a large fast current sinking capability is required, the user can choose APM programmable electric DC loads as well. A power supply can connect and control three DC loads at the same time through CAN communication to realize a rapid response system. Meeting demanding requirements of high power discharging test.



List/Program/Step Mode Programming

This series power supply provides List/Program/Step modes for output waveform programming. Users can edit the voltage/current value & the time of each step in advance and provide the power supply with a trigger signal. Then the preset sequences / waveform will be executed automatically according to the defined files. Sequence mode supports link between multiple files, the user can set the repeat times of each file and the total repeat times of the complete sequence file.



Professional Version Power Supply Function

DDS Arbitrary Function Generator

This series power supply includes a true function generator which can generate typical functions as displayed below, convenient for editing or directly recall. Additional to the standard functions, this arbitrary generator is accessible for the creation and execution of complex sets of functions, which is can be used for testing purposes in development and production.



Built-in Standard Automotive Power Network Voltage Curves

This series power supply has built-in German DIN40839 standard voltage curve for the automotive power network and the international standard ISO-16750-2 pulse waveform. The fast rise/fall response time together with arbitrary function generate ability make it can truly simulate the influence on the performance of automotive electronic equipment under different test conditions, is the preferred power testing instrument in the automotive electronics industry.



Solar Panel I-V Curve Simulation Function

The power supply provides an unique feature to simulate the output characteristics of a solar array includes Curve Mode, User-defined Mode and SAS Mode. With Curve mode, only need to set four parameters to simulate the solar array I-V curve. With User-defined mode, user can shape an I-V curve by entering up to 4096 points to simulate dynamic cloud cover effect which is useful for MPPT performance evaluation on PV inverter device. With built-in SAS mode, user can set the parameters to simulate I-V curve characteristic output and generate reports.



Smart 3-stage Charging Algorithm Simulation

This series power supply adopts 3-stage charging algorithm, built-in charging curves which is suitable for the commonly known types of batteries on the market. Users can directly recall the default curves or change the switching conditions at different charging stage according to the test requirement. Through the internal design, it improved and optimized hardware improvements, the current passing from the battery to power supply will be less than 10mA at any battery voltage when turn off the power supply. Thus avoid battery capacity loss, even when there is no anti reverse irrigation equipment.



Battery Simulator Function

This series power supply built-in typical battery internal resistance curves and discharging curves can easily simulate battery behavior in real-case.

  • Large color touch screen with intuitive interface provides an excellent intuition operational experience
  • 3-phase input voltage meets worldwide power distribution regulation, AC mains 187~253Vac/340~460Vac for optional
  • Constant voltage (CV), constant current (CC) and constant power (CP) operation mode, CC or CV working priority setting
  • Adjustable voltage/current slew rate
  • DDS Arbitrary function generator*
  • Solar panel I-V curve simulation function*
  • Smart 3-stage charging algorithm simulation*
  • Battery simulator function*
  • Continuous source & sink function, with APM DC E-load to expand loading capability (optional)
  • List/ Step mode programming
  • TTL/Analog control and monitoring
  • Built-in standard automotive power network voltage curves*
  • Full protection: OVP, OCP, OPP and OTP protection
  • Supports master-slave mode, paralleling up to 16 units
  • Supports SCPI commands, provides web GUI function

* Only professional version units support these functions



Miscellaneous

InsulationAC input <-> DC output, 4242VDC, AC input <->PE, 2818VDC
Pollution Degree2
Protection ClassI
Over Voltage CategoryII



Mechanical

Net Weight43kg
Unit Net Weight34kg
Package Dimensions (mm)665W x 347H x 1009D
Dimensions (mm)483W x 132H x 800D



Environmental

Fan Noise48dB Idle; 67dB Max;
Altitude<2000m@45˚C; <2001m~2500m@40˚C
Relative Humidity<95%RH (non-condensing) @ 35˚C, <80%RH (non-condensing) @40˚C
Temperature Coefficient100ppm/˚C (voltage), 150ppm/˚C (current)
Storage Temperature-20~70˚C
Operating Temperature0~45˚C



Master / Slave Control

Parallel Outputmax 16 units
Serial Outputmax 2 units



Analog Interface (Optional)

Galvanic Isolation to the Device1.5kVDC
Sample Rate of Input & Output45Hz
Status SignalsCV, OVP, OT
Control SignalsDC On/Off, Remote Control On/Off
Actual Output U/I<0.2%
Accuracy U/I/P/R<0.2% F.S
Actual Value OutputAnalog output 0~5V/0~10V to monitor the voltage and current.
Set Value InputsAnalog input 0~5V/0~10V or 0~5kΩ/0~10kΩ to set 0~105% voltage, current and power



General

Command Response Time<3ms
InterfaceRS232 / RS485 / USB(Standard), GPIB/LAN (Optional), CAN (Optional)
ProtectionOCP, OVP, OPP, OTP
FanTemperature Control
Rack Mount HandlesYes
Operation Key FeatureSoft keys, Numeric keys, Rotary knob, Support USB disk
Graphic Display4.3 Inch Color Touch LCD



Sink Function

Dynamic Mode20ms~50s
Slew Rate0.01~2.5A/µs
CP Accuracy<0.5% Pmax (3250mW)
CP Resolution0.5W
CV Accuracy<0.1% Umax (80mV)
CV Resolution<4mV
CC Accuracy<0.2% Imax (396mA)
CC Resolution10mA
Min. Operating Voltage1V
Input Power0~650W
Input Current0~198A
Input Voltage0~80V



Output

Remote Compensation
Voltage5% Umax (4V)
Transient Response Time
Voltage≤1.5ms/0.8V
Drop Time
Voltage<650ms (No Load) <10ms (Full Load)
Rise Time
Voltage<15ms (No Load) <10ms (Full Load)
Ripple
Current<200mArms
Voltage<288mVpp, <23mVrms
Measurement Accuracy
Internal Resistance<0.4% Rmax
Power<0.5% Pmax
Current<0.2% Imax (800mA)
Voltage<0.1% Umax (80mV)
Display Resolution
Internal Resistance0.0001Ω
Power0.1W
Current0.001A
Voltage0.001V
Load Regulation
Power<0.75% Pmax
Current<0.15% Imax (600mA)
Voltage<0.05% Umax (40mV)
Line Regulation
Power<0.05% Pmax
Current<0.05% Imax (200mA)
Voltage<0.02% Umax (16mV)
Accuracy
Internal ResistanceR<2% Rmax, I<0.3% Imax
Power<0.5% + 60W
Current<0.2% Imax (800mA)
Voltage<0.1% Umax (80mV)
Maximum Setup Range
Internal Resistance0~6Ω
Power0~12600W (0~105%)
Current0~420A (0~105%)
Voltage0~84V (0~105%)
Power Range0~12000W
Current Range0~400A
Voltage Range0~80V



Input

Efficiency90.5% / 92.5%
Input Power14.6KVAmax
Power Factor>0.99
Fusing (Internal)T50A*2pcs / T25A*2pcs
Connection3ph, PE
Frequency45~65Hz
Current3P208 L1-60A, L2, L3-38A / 3P400 L1-30A, L2, L3-19A
Voltage187~253VAC / 340~460VAC
