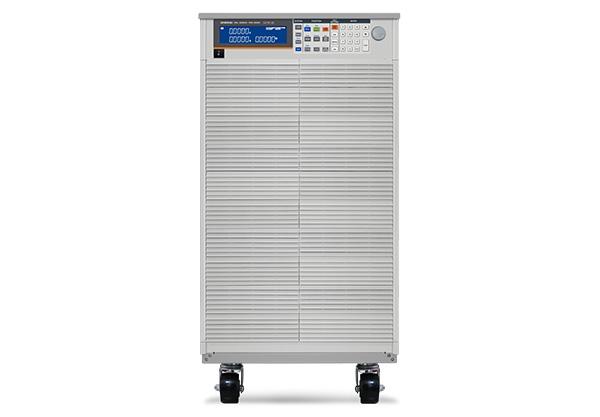

GW Instek PEL-5020C-1200-800 - 1200V, 800A, 20kW High Power DC Electronic Load

1200V, 800A, 20kW High Power DC  Electronic Load

GW Instek

Rated 0 / 5 (0 reviews)

Category : High Power Compact DC Load

by quote only Add to Cart

Documents:
Datasheet

Overview
Features
Specifications
Calibration

GW Instek PEL-5000C series single-channel electronic load provides 150V/ 600V/ 1200V models with a power range of 6kW~24kW. PEL-5000C has a total of 24 models featuring different combinations of power, voltage, and current. It can test and verify the specifications of batteries, electric vehicle chargers/charging stations, electric vehicle batteries and solar panels. PEL-5000C supports parallel connection for same voltage specification and different power models. PEL-5000C can support up to 8 units connected in parallel to provide a maximum power of 192kW.

DC Electronic Load
For the scenario of battery testing, PEL-5000C specifically provides four battery discharge modes, namely CC+CV battery discharge test mode, CP+CV battery discharge test mode, CC+ UVP battery discharge test mode, and CP+ UVP battery discharge test mode. Users can choose a suitable test mode according to the test requirements. In addition to the four battery discharge modes, PEL-5000C also provides Time period discharge, Pulse discharge, and RAMP discharge modes. Users can set the discharge time, or discharge in the pulse current mode, or even set the rising/falling slew rate of the discharge current. These functions can be very flexible in the simulation of the battery discharge current waveform when an electric vehicle is running.

In order to meet the verification requirements of different DUTs, PEL-5000C provides a variety of test functions, including inrush current test mode, solar panel MPPT test mode, automated OCP, OPP test functions and 150 sets of parameter storage function. The 1200V model of PEL-5000C not only provides full power output at 1000V, but also provides 60% power output at 1200V output, which is higher than the 50% power output of other manufacturers of similar electronic loads. High-voltage batteries or chargers directly connected to the electronic load may cause damage to the electronic load. PEL-5000C has a built-in slow starter, which not only protects the DC load, but also saves the user's installation cost and setting time for measurement.

  • Maximum power up to 192KW
  • Up to 8 units of master/slave parallel control
  • 5-digit digital voltage, current and power meter
  • Large LCD Display
  • Display voltage value, current value, watt value at the same time
  • Suitable for power factor regulator (PFC) testing (600V, 1200V models)
  • Automatically perform OCP, OPP test
  • The power-on state value can be set
  • Constant current, constant resistance, constant voltage, constant power, constant current + constant voltage, constant power + constant voltage, dynamic and short circuit modes
  • Short circuit time can be set during short circuit test
  • Over current, over power, over temperature protection and over voltage warning
  • Voltage polarity display can be set to positive value ("+") or negative value ("-")
  • Support solar panel MPPT test
  • Optional interface: GPIB, RS232, USB, LAN



Power: 20kW / Current: 0 ~ 80A

General
Voltage0 ~ 1200V
Min. Operating Voltage15V@800A
Typical Short Resistance0.0188Ω
Maximum Short Current800A
Load ON Voltage1 ~ 250V
Load OFF Voltage0 ~ 250V
Power Consumption1450VA
Dimension(HxWxD)884mm x 444mm x 763mm
HxWxD(Not included wheels)780mm x 444mm x 763mm
Weight140.5KG
Temperature *50~40°C
Safety & EMCCE

Note *5: Operating temperature range is 0~40°C, All specifications apply for 25°C±5°C, Except as noted

Protections
Over Power Protection(OPP)105%
Over Current Protection(OCP)104%
Over Voltage Protection(OVP)105%
Over Temp Protection(OTP)90℃±5℃
Constant Current Mode
Range *280A
Resolution1.28mA
Accuracy *3± 0.05% of (Setting + Range)

Note *2 : The range is automatically or forcing to range II only in CC mode
Note *3 : If the operating current is below range 0.1%, the accuracy specification is 0.1% F.S.

Constant Resistance Mode
Range9KΩ ~ 1.5Ω
Resolution11.111uS
Accuracy± 0.2% of (Setting + Range)
Constant Voltage Mode
Range1200V
Resolution20mV
Accuracy± 0.05% of (Setting + Range)
Constant Power Mode
Range2000W
Resolution32mW
Accuracy± 0.2% of (Setting + Range)
Constant Voltage Mode + Constant Current Mode
Range1200V
Resolution20mV
Accuracy± 1.0% of (Setting + Range)
Constant Voltage Mode + Constant Power Mode
Range1200V
Resolution20mV
Accuracy± 1.0% of (Setting + Range)
Surge Test
Surge & Normal current0~800A
Surge time10~1000ms
Surge step1~5
MPPT Mode
AlgorithmP&O
Load modeCV
P&O interval1000ms ~ 60000ms; resolution 1000ms
Dynamic Mode
Timing
Thigh & Tlow0.010~9.999 / 99.99 / 999.9 / 9999mS
Resolution0.001 / 0.01 / 0.1 / 1mS
Accuracy1uS/10uS/100uS/1mS + 50ppm
Slew rate0.0352A ~ 2.2A/uS
Resolution0.0088A/uS
Current
Range0 ~ 80A
Resolution1.28mA
Measurement
Voltage Read Back
Range (5 Digital)0 ~ 120V
Resolution2mV
Accuracy± 0.025% of (Reading + Range)
Current Read Back
Range (5 Digital)0 ~ 80A
Resolution1.28mA
Accuracy± 0.05% of (Reading + Range)
Power Read Back
Range (5 Digital)20000W
Accuracy *4± 0.06% of (Reading + Range)

Note *4 : Power F.S. = Vrange F.S. x Irange F.S.

Note *1 : The power rating specifications at ambient temperature = 25 ̊C



Power: 20kW / Current: 0 ~ 800A

General
Voltage0 ~ 1200V
Min. Operating Voltage15V@800A
Typical Short Resistance0.0188Ω
Maximum Short Current800A
Load ON Voltage1 ~ 250V
Load OFF Voltage0 ~ 250V
Power Consumption1450VA
Dimension(HxWxD)884mm x 444mm x 763mm
HxWxD(Not included wheels)780mm x 444mm x 763mm
Weight140.5KG
Temperature *50~40°C
Safety & EMCCE

Note *5: Operating temperature range is 0~40°C, All specifications apply for 25°C±5°C, Except as noted

Protections
Over Power Protection(OPP)105%
Over Current Protection(OCP)104%
Over Voltage Protection(OVP)105%
Over Temp Protection(OTP)90°C±5°C
Constant Current Mode
Range *2800A
Resolution12.8mA
Accuracy *3± 0.05% of (Setting + Range)

Note *2 : The range is automatically or forcing to range II only in CC mode
Note *3 : If the operating current is below range 0.1%, the accuracy specification is 0.1% F.S.

Constant Resistance Mode
Range1.5Ω ~ 0.0187Ω
Resolution25uΩ
Accuracy± 0.2% of (Setting + Range)
Constant Voltage Mode
Range1200V
Resolution20mV
Accuracy± 0.5% of (Setting + Range)
Constant Power Mode
Range20000W
Resolution320mW
Accuracy± 0.1% of (Setting + Range)
Constant Voltage Mode + Constant Power Mode
Range20000W
Resolution320mW
Accuracy± 1.0% of (Setting + Range)
Constant Voltage Mode + Constant Current Mode
Range800A
Resolution3.84mA
Accuracy± 1.0% of (Setting + Range)
Surge Test
Surge & Normal current0~800A
Surge time10~1000ms
Surge step1~5
MPPT Mode
AlgorithmP&O
Load modeCV
P&O interval1000ms~60000ms ; resolution 1000ms
Dynamic Mode
Timing
Thigh & Tlow0.010~9.999 / 99.99 / 999.9 / 9999mS
Resolution0.001 / 0.01 / 0.1 / 1mS
Accuracy1uS/10uS/100uS/1mS + 50ppm
Slew rate0.352A ~ 22A/uS
Resolution0.088A/uS
Current
Range80 ~ 800A
Resolution12.8mA
Measurement
Voltage Read Back
Range (5 Digital)120 ~ 1200V
Resolution20mV
Accuracy± 0.025% of (Reading + Range)
Power Read Back
Range (5 Digital)20000W
Accuracy *4± 0.06% of (Reading + Range)
Current Read Back
Range (5 Digital)80 ~ 800A
Resolution12.8mA

Note *1 : The power rating specifications at ambient temperature = 25 ̊C
