GW Instek LCR-8205A - DC, 10Hz~5MHz High-Frequency LCR Meter

DC, 10Hz~5MHz High-Frequency LCR Meter

GW Instek

Rated 0 / 5 (0 reviews)

Category : LCR Meter

by quote only add to cart

Documents:
Datasheet

Overview
Features
Specifications
Calibration

GW Instek launches a new series of high-frequency LCR meter ~ LCR-8200(A), which has five models and the maximum test frequency is up to 50MHz. The entire series adopts 7-inch color display and features a high measurement accuracy (0.08%).



The measurement results can be presented numerically or graphically according to the selected measurement mode, allowing users to optimally interpret the characteristics of the DUT. At the same time, a full range of standard interfaces such as USB device / RS-232C / Handler and GPIB allow users to control the instrument by the most familiar interface without worrying about additional hardware investment costs.



Furthermore, the series also provides USB storage function when operating in the graphics mode. The measured characteristic curves and values of the DUT are saved for subsequent analysis. The wide variety of features of the LCR-8200(A) can help users easily respond to the test requirements of passive components in R&D, engineering, and production.

  • Wide Test Frequency:
  • DC, 10Hz~50/30/20/10/5 MHz
  • 7" LCD color Display
  • 0.08% Basic Accuracy
  • Displaying Four Measurement Results Simultaneously From 17 Selectable Measurement Parameters Freely
  • 15 Steps List Measurement
  • Two Curves Sweep Mode
  • Equivalent Circuit Model Analysis (LCR-8200A only)
  • Internal DC Bias Voltage ±12V
  • USB Storage Available
  • ALC Function Available
  • Standard Interfaces: RS-232C, USB Host/Device, LAN, GPIB and Handler
  • Universal Power Input



General

Test FrequencyDC, 10Hz~5MHz; 6 Digits, ±0.0007%
Output Impedance25Ω / 100Ω Selectable
Basic Accuracy±0.08%
Test SpeedMAX: 2.5ms(>10kHz), FAST: 50ms(>20Hz), MEDIUM: 100ms
SLOW: 300ms, SLOW2: 600ms
Measurement ParametersMaximum four parameters can be measured and displayed at the same time Impedance (Z), Inductance (Ls / Lp), Capacitance (Cs / Cp), AC Resistance (Rs / Rp), Quality Factor (Q), Dissipation Factor (D), Admittance (Y), Conductance (G), Reactance (X), Phase Angle (θd / θr), Susceptance (B), DC Resistance (Rdc)
Equivalent Circuit Model Analysis (“A” series only)7 different equivalent circuit models. The 3-components analysis model is composed of 4 types, and the 4-components analysis model covers 3 types.
Display7" LCD color display (800x480)
InterfaceUSB/GPIB/LAN/RS-232/Handler/USB Host/TRIGGER Input
Power SourceAC 100V~240V, 50/60Hz; Consumption: 65VA (max.)
Dimensions & Weight346 (W) X 145 (H) X 335 (D) mm; Approx. 3.3kg



Test Signal Level

AC Voltage10mV ~ 2Vrms (FREQ. ≦ 1MHz), 10mV ~ 1Vrms (FREQ. > 1MHz or FREQ. ≦ 1MHz and RO=25Ω)
AC Current100μA ~ 20mArms (RO=100Ω), 200μA ~ 40mArms (RO=25Ω)
DCR Voltage1Vdc (40mA max.)



List Measurement

Listed Steps15
Listed ParametersFreq/Vac/Iac/DC Bias/Comp/BIN
TriggerAUTO, REPEAT, SINGLE



Sweep Measurement

Swept GraphicalTwo of measurement parameters
Swept ParametersFreq/Vac/Iac/BIAS V, Keep Trace



Other Functions

Auto Level ControlStandard
ALC
DC Bias0 ~ ±12V
HandlerPASS, FAIL and OK, NG or BIN 1-9



Other Features

CorrectionOpen/Short/HF Load/Load
V/I MonitorVac, Iac, Vdc, Idc
ComparatorValue, Δ, Δ%
BuzzerOFF, Pass, Fail
Average1 to 64

Ps: Difference between “A” series and “Non-A” series is only the “A” series provides the equivalent circuit model analysis.



Diagrams

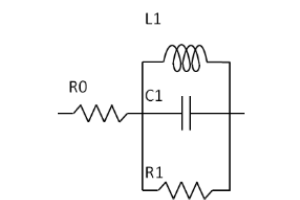

Equivalent Circuit ModelTypical Frequency Characteristics
A
B
C
D
E
F
G
