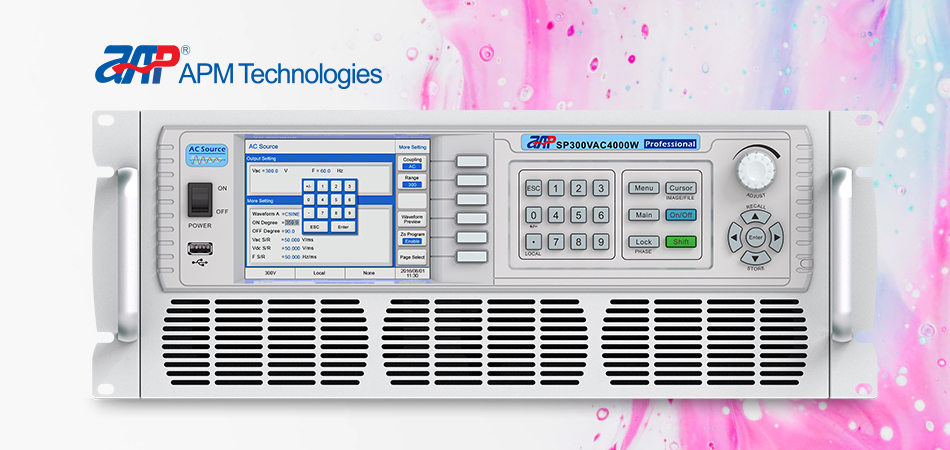

High Performance Programmable AC Source



High Performance Programmable AC Source

It is a switching mode single-channel output high-precision programmable AC power source, which adopts high speed DSP+CPLD control, high frequency PWM power technology and active PFC design to realize AC/DC stable output. It is featured with high power density, high reliability and high precision, meanwhile it possesses operation interface of touch screen and keys manually. It is able to analog output normal or abnormal input for electrical device to meet test requirements. Meet the verification of power electronics, motors, lighting, avionics, automotive electronics research and development quality assurance laboratory, as well as the production test verification of factory production line.



Professional

Model Output
Rated Voltage Rated Current Rated Power
150V/300V 5.6A/2.8A 600W
150V/300V 9.2A/4.6A 1000W
150V/300V 13.8A/6.9A 1500W
150V/300V 16A/8A 2000W
150V/300V 27.6A/13.8A 3000W
150V/300V 32A/16A 4000W
150V/300V 46A/23A 5000W
Output Model Size Standard Communication Interface
Rated Voltage Rated Current Rated Power
150V/300V 5.6A/2.8A 600W 2U RS232/TS485/USB
150V/300V 9.2A/4.6A 1000W 2U RS232/TS485/USB
150V/300V 13.8A/6.9A 1500W 2U RS232/TS485/USB
150V/300V 16A/8A 2000W 3U RS232/TS485/USB/LAN
150V/300V 27.6A/13.8A 3000W 4U RS232/TS485/USB/LAN
150V/300V 32A/16A 4000W 4U RS232/TS485/USB/LAN
150V/300V 46A/23A 5000W 4U RS232/TS485/USB/LAN



Advanced

Model Output
Rated Voltage Rated Current Rated Power
150V/300V 5.6A/2.8A 600W
150V/300V 9.2A/4.6A 1000W
150V/300V 13.8A/6.9A 1500W
150V/300V 16A/8A 2000W
150V/300V 27.6A/13.8A 3000W
150V/300V 32A/16A 4000W
150V/300V 46A/23A 5000W
Output Model Size Standard Communication Interface
Rated Voltage Rated Current Rated Power
150V/300V 5.6A/2.8A 600W 2U RS232/TS485/USB
150V/300V 9.2A/4.6A 1000W 2U RS232/TS485/USB
150V/300V 13.8A/6.9A 1500W 2U RS232/TS485/USB
150V/300V 16A/8A 2000W 3U RS232/TS485/USB/LAN
150V/300V 27.6A/13.8A 3000W 4U RS232/TS485/USB/LAN
150V/300V 32A/16A 4000W 4U RS232/TS485/USB/LAN
150V/300V 46A/23A 5000W 4U RS232/TS485/USB/LAN
×
