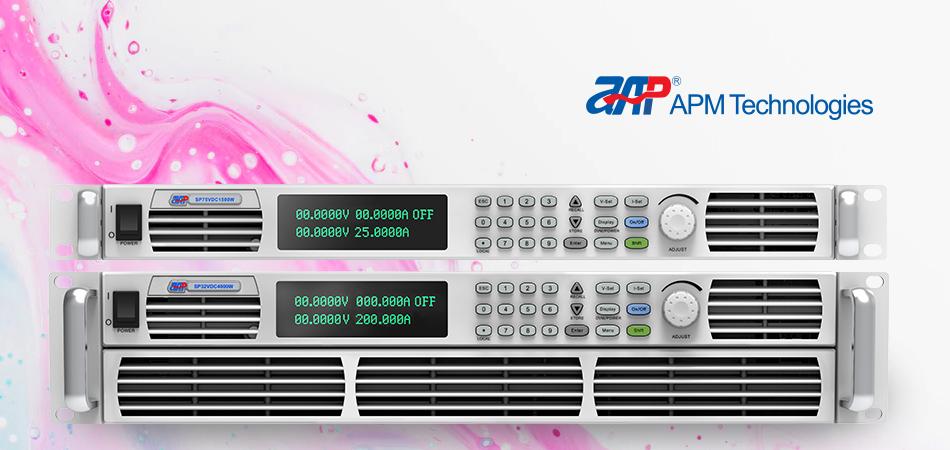

Wide-range Programmable DC Power Supply



Wide-range Programmable DC Power Supply

APM provides stable DC output and wider range voltage and current. For single unit, current range could reach to 200A. Voltage range could reach to 800V. One unit programmable power supplier could substitute several rectangular power. It could output multiple voltage and current group, set timed output time, provide OVP, OCP, OPP via front panel or PC. It supports list file function with built-in automotive electronics test waveform. Standard interfaces include RS232, RS485, USB, LAN. GPIB is optional. It could apply in various fields.





Model Output
Rated Voltage Rated Current Rated Power
20V 60A 600W
1000W
1200W
32V 50A 600W
1000W
1200W
1600W
200A 1000W
2000W
3000W
4000W
40V 40A 600W
1000W
1200W
1600W
120A 1000W
2000W
3000W
4000W
75V 25A 600W
1000W
1200W
1500W
60A 4000W
80V 60A 1000W
2000W
3000W
120V 40A 1000W
2000W
3000W
4000W
150V 10A 600W
1000W
1200W
1500W
30A 1000W
2000W
3000W
4000W
200V 8A 600W
1000W
1200W
1500W
24A 1000W
2000W
3000W
4000W
600V 10A 1000W
2000W
3000W
4000W
800V 7.5A 1000W
2000W
3000W
4000W
Output Model Size Ripple Response
Rated Voltage Rated Current Rated Power Voltage Current Voltage Increase Voltage Drop
20V 60A 600W 1U 40mVp-p/6mVrms 20mA (TYP Value) ≤10ms(No load), ≤10ms(Full load) ≤150ms(No load), ≤20ms(Full load)
1000W ≤150ms(No load), ≤15ms(Full load)
1200W ≤150ms(No load), ≤12ms(Full load)
32V 50A 600W 1U 40mVp-p/6mVrms 20mA (TYP Value) ≤12ms(No load), ≤12ms(Full load) ≤150ms(No load), ≤20ms(Full load)
1000W ≤150ms(No load), ≤15ms(Full load)
1200W ≤10ms(No load), ≤10ms(Full load) ≤150ms(No load), ≤12ms(Full load)
1600W ≤150ms(No load), ≤10ms(Full load)
200A 1000W 2U 60mVp-p/10mVrms 200mA (TYP Value) ≤20ms(No load), ≤40ms(Full load) ≤500ms(No load), ≤45ms(Full load)
2000W ≤20ms(No load), ≤30ms(Full load) ≤500ms(No load), ≤30ms(Full load)
3000W ≤20ms(No load), ≤20ms(Full load) ≤500ms(No load), ≤25ms(Full load)
4000W ≤500ms(No load), ≤20ms(Full load)
40V 40A 600W 1U 40mVp-p/6mVrms 20mA (TYP Value) ≤10ms(No load), ≤10ms(Full load) ≤150ms(No load), ≤20ms(Full load)
1000W ≤150ms(No load), ≤15ms(Full load)
1200W ≤150ms(No load), ≤12ms(Full load)
1600W ≤150ms(No load), ≤10ms(Full load)
120A 1000W 2U 40mVp-p/6mVrms 20mA (TYP Value) ≤10ms(No load), ≤10ms(Full load) ≤350ms(No load), ≤10ms(Full load)
2000W
3000W
4000W
75V 25A 600W 1U 40mVp-p/6mVrms 10mA (TYP Value) ≤10ms(No load), ≤10ms(Full load) ≤160ms(No load), ≤20ms(Full load)
1000W ≤160ms(No load), ≤15ms(Full load)
1200W ≤160ms(No load), ≤12ms(Full load)
1500W ≤160ms(No load), ≤10ms(Full load)
60A 4000W 2U 40mVp-p/8mVrms 10mA (TYP Value) ≤15ms(No load), ≤15ms(Full load) ≤450ms(No load), ≤20ms(Full load)
80V 60A 1000W 2U 40mVp-p/6mVrms 10mA (TYP Value) ≤15ms(No load), ≤15ms(Full load) ≤450ms(No load), ≤30ms(Full load)
2000W
3000W
120V 40A 1000W 2U 80mVp-p/15mVrms 10mA (TYP Value) ≤20ms(No load), ≤20ms(Full load) ≤350ms(No load), ≤21ms(Full load)
2000W
3000W
4000W
150V 10A 600W 1U 120mVp-p/40mVrms 10mA (TYP Value) ≤25ms(No load), ≤25ms(Full load) ≤400ms(No load), ≤32ms(Full load)
1000W
1200W
1500W
30A 1000W 2U 80mVp-p/15mVrms 10mA (TYP Value) ≤25ms(No load), ≤25ms(Full load) ≤500ms(No load), ≤25ms(Full load)
2000W
3000W
4000W
200V 8A 600W 1U 120mVp-p/40mVrms 10mA (TYP Value) ≤30ms(No load), ≤30ms(Full load) ≤600ms(No load), ≤50ms(Full load)
1000W ≤600ms(No load), ≤40ms(Full load)
1200W ≤600ms(No load), ≤36ms(Full load)
1500W ≤600ms(No load), ≤30ms(Full load)
24A 1000W 2U 150mVp-p/30mVrms 20mA (TYP Value) ≤30ms(No load), ≤30ms(Full load) ≤500ms(No load), ≤20ms(Full load)
2000W
3000W
4000W
600V 10A 1000W 2U 350mVp-p/40mVrms 10mA (TYP Value) ≤60ms(No load), ≤60ms(Full load) ≤800ms(No load), ≤110ms(Full load)
2000W ≤800ms(No load), ≤90ms(Full load)
3000W ≤800ms(No load), ≤75ms(Full load)
4000W ≤800ms(No load), ≤60ms(Full load)
800V 7.5A 1000W 2U 800mVp-p/200mVrms 10mA (TYP Value) ≤60ms(No load), ≤60ms(Full load) ≤800ms(No load), ≤60ms(Full load)
2000W
3000W
4000W
×
