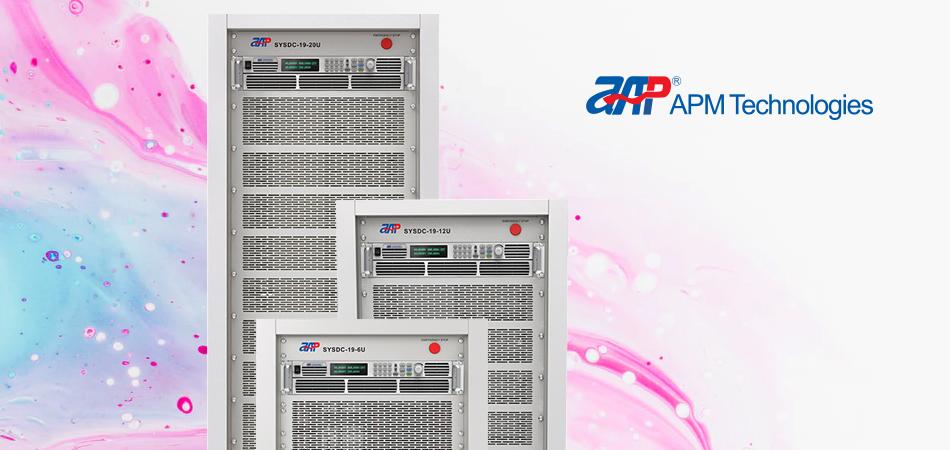

Programmable DC Power System

APM provides stable DC output. Built-in voltage and current measurement function could provide wider range voltage and current combination. Single unit could cover range from 12KW to 40KW. Power rang could reach to 2000A and voltage range could reach to 1200V.

DC source system can fulfill different kinds of DC power applications. Users can set the output voltage, current arbitrarily. Measure all kinds of features and display on VFD. At the meanwhile, power source provide multi standard interface, simplify and accelerate test development.

Output			Model	Size
Rated Voltage	Rated Current	Rated Power	Model	Size
32V	600A	12kW	SYS32VDC12000W	6U
	1200A	24kW	SYS32VDC24000W	12U
	2000A	40kW	SYS32VDC40000W	20U
40V	360A	12kW	SYS40VDC12000W	6U
	720A	24kW	SYS40VDC24000W	12U
	1200A	40kW	SYS40VDC40000W	20U
75V	180A	12kW	SYS75VDC12000W	6U
	360A	24kW	SYS75VDC24000W	12U
	600A	40kW	SYS75VDC40000W	20U
96V	200A	12kW	SYS96VDC12000W	6U
120V	120A	12kW	SYS120VDC12000W	6U
	240A	24kW	SYS120VDC24000W	12U
	400A	40kW	SYS120VDC40000W	20U
150V	90A	12kW	SYS150VDC12000W	6U
	180A	24kW	SYS150VDC24000W	12U
	300A	40kW	SYS150VDC40000W	20U
192V	200A	24kW	SYS192VDC24000W	12U
200V	72A	12kW	SYS200VDC12000W	6U
	144A	24kW	SYS200VDC24000W	12U
	240A	40kW	SYS200VDC40000W	20U
225V	60A	12kW	SYS225VDC12000W	6U
240V	120A	24kW	SYS240VDC24000W	12U
320V	200A	40kW	SYS320VDC40000W	20U
360V	40A	12kW	SYS360VDC12000W	6U
400V	120A	40kW	SYS400VDC40000W	20U
450V	30A	12kW	SYS450VDC12000W	6U
450V	60A	24kW	SYS450VDC24000W	12U
600V	30A	12kW	SYS600VDC12000W	6U
	60A	24kW	SYS600VDC24000W	12U
	100A	40kW	SYS600VDC40000W	20U
720V	40A	24kW	SYS720VDC24000W	12U
750V	60A	40kW	SYS750VDC40000W	20U
800V	22.5A	12kW	SYS800VDC12000W	6U
	45A	24kW	SYS800VDC24000W	12U
	75A	40kW	SYS800VDC40000W	20U
900V	30A	24kW	SYS900VDC24000W	12U
1200V	24A	24kW	SYS1200VDC24000W	12U
1200V	40A	40kW	SYS1200VDC40000W	20U

Output			Model
Rated Voltage	Rated Current	Rated Power	Model
32V	600A	12kW	SYS32VDC12000W
	1200A	24kW	SYS32VDC24000W
	2000A	40kW	SYS32VDC40000W
40V	360A	12kW	SYS40VDC12000W
	720A	24kW	SYS40VDC24000W
	1200A	40kW	SYS40VDC40000W
75V	180A	12kW	SYS75VDC12000W
	360A	24kW	SYS75VDC24000W
	600A	40kW	SYS75VDC40000W
96V	200A	12kW	SYS96VDC12000W
120V	120A	12kW	SYS120VDC12000W
	240A	24kW	SYS120VDC24000W
	400A	40kW	SYS120VDC40000W
150V	90A	12kW	SYS150VDC12000W
	180A	24kW	SYS150VDC24000W
	300A	40kW	SYS150VDC40000W
192V	200A	24kW	SYS192VDC24000W
200V	72A	12kW	SYS200VDC12000W
	144A	24kW	SYS200VDC24000W
	240A	40kW	SYS200VDC40000W
225V	60A	12kW	SYS225VDC12000W
240V	120A	24kW	SYS240VDC24000W
320V	200A	40kW	SYS320VDC40000W
360V	40A	12kW	SYS360VDC12000W
400V	120A	40kW	SYS400VDC40000W
450V	30A	12kW	SYS450VDC12000W
450V	60A	24kW	SYS450VDC24000W
600V	30A	12kW	SYS600VDC12000W
	60A	24kW	SYS600VDC24000W
	100A	40kW	SYS600VDC40000W
720V	40A	24kW	SYS720VDC24000W
750V	60A	40kW	SYS750VDC40000W
800V	22.5A	12kW	SYS800VDC12000W
	45A	24kW	SYS800VDC24000W
	75A	40kW	SYS800VDC40000W
900V	30A	24kW	SYS900VDC24000W
1200V	24A	24kW	SYS1200VDC24000W
1200V	40A	40kW	SYS1200VDC40000W
